Saniflo Sanigrind Pro Grinder pump Only


5 Reviews

Saniflo Sanigrind Pro Grinder pump Only


5 Reviews

Please note

Sales and promotions do not apply to this product

check availability

free shipping on orders over $75
damage free guaranteeView Guidelines
no sales tax outside New Jersey

Item Description

Overview is an authorized Saniflo dealer.

BrandSanifloShop All Saniflo
CollectionSanifloShop All Saniflo
Model Number014

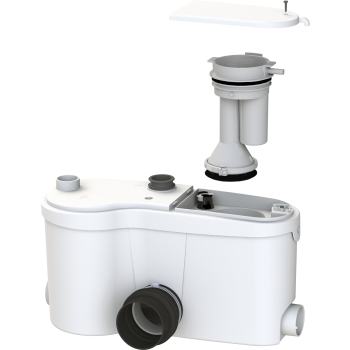

The Sanigrind allows you to install a bathroom up to 18 feet below the sewer line or 150 feet away from the soil stack. Unlike any other pump in the Saniflo line the sanigrind was designed to work in conjunction with a typical bottom outlet toilet. It also differs from most other Saniflo products in that it incorporates an actual grinder system as opposed to the macerator the other products use. The Sanigrind can be connected to and discharge gray waste water from a toilet, shower, sink, bathtub and washing machine. It was specifically created to deal with situations where you have no control over what goes down the toilet such as in a rental unit or office.

Benefits and features:

  • Grinder unit only (works with any regular bottom outlet toilet)
  • Based on the best selling Sanibest system
  • The Sanigrind unit discharges the effluent through a 3/4-inch diameter pipe into a sanitary gravity drain.
  • The typical operating cycle for Sanigrind is approximately 10-20 seconds, resulting in the minimum power consumption.
  • Waste water from other fixtures is released into Sanigrind via two 1½-inch inlets, on either side of the housing. Either one or both inlets can be used as required.
  • The discharge elbow on top of the Sanigrind can be turned either to the left or to the right, depending on the discharge installation.
  • Made for human waste and toilet tissue. It can however grind up other substances that may have unintentionally been flushed down the toilet (I.e. strands of wool, sanitary napkins, condoms, but not dental floss, cat litter or disposable diapers)

Other fixtures:
In addition to the toilet waste, Sanigrind will also discharge gray waste water from a variety of other sanitary fixtures:

  • Sink (Note: not kitchen)
  • Bath
  • Bidet
  • Urinal
  • Clothes washer (Note: washing machine must drain to a laundry sink or tub first).

The Sanigrind is intended to provide vertical pumping up to 18 feet as well as a horizontal discharge; for that reason a simple ball non-return valve is integrated. This allows you to install a complete bathroom where previously this would have been unfeasible or where significant capital equipment and structural work would have been required.

Motor RPM 3600
Horsepower 1
Electrical Supply 110-115V; 60Hz;
Flow rate at max head USG /MIN 18 ft: 13 usg/mi;3 ft: 24 usg
Amperage 9.0
Discharge Pipe Diameter 3/4" diameter
Vertical Discharge 18 ft
Horizontal Discharge 150 ft
Gravity fall on horizontal installations 1/4" per ft
Normal Running Time WC 10-20 seconds
Maximum Temperature 104°F
Water Consumption 1.6 US gal -Depends on Wc
Dimensions (measured from floor level) H12" x W18" x D9"
Materials Polypropylene, C.R.P., stainless steel, Neoprene

PDF Technical Diagram

Questions and Answers

There are 2  questions about this item
Can this be used with a wall mounted toilet?

Saniflo recommends that you use the Sanipack pump when using a wall mounted toilet.

Can this be used for a toilet with a back outlet?

The Sanigrind unit will only work with a vertical outlet toilet. May I suggest the Sanibest model instead that can work with a back outlet toilet.

Speak Directly to an Expert

Josh732.534.8575Email Josh

Dov732.534.8569Email Dov

Jack732.534.8579Email Jack

Saniflo   014   Reviews

This item currently has 5  reviews
You guys are great out filled my oder,and within three days it way here and in good condition thanks againn

Im glad i installed this unit its been a year now and so far so good.your prices were cheaper than any supply house in my area and trust me Im in the trade and I always go for a bargain.I would recommend quality bath to everyone I know that has a job doing a bath or kitchen.

Emilio from CT —
Saniflo Sanigrind

I purchased the Sanigrind model for a full bathroom I installed in our basement. Very prompt shipping from Quality Bath, even though the item was cracked on the bottom of the plastic tank. No big deal, things happen, all I did was contact Saniflo direct and they shipped me out a brand new one. The unit works exactly as it should...Perfect!!! I'm very pleased with the Sanigrind. It was so simple to install. The instructions are very detailed with lots of pictures making it almost impossible to make a mistake when installing. I have a family of six and lots of guests over, so I wanted a really good upflush system as this bathroom is right next to our Family/Entertainment Room. I read all the reviews on the Saniflo products and made my decision to go with the Sanigrind model because it is virtually indestructible. Thank you all for carrying such great products at really inexpensive prices. My total bathroom cost me a third of what three different contractors quoted me. Again, Thank You!! I was able to install everything myself with such ease!!

Jeremy from MO —
I would happly recomend the product and the sales experince i had with quality bath

So far I am very happy with my Sanigrind it works as avertized ansd saved me driling a massive whole in my concrete floor. I would happly recomend the product and the sales experince i had with quality bath

Josh K. from CT —
The Saniflo system that I have purchased, has worked without flaw!

The Saniflo system that I have purchased, has worked without flaw! It is being used as a half a bath and located near the Family/TV room so it gets lots of use by a family of four and quests/friends. So far, I have no complaints only praise. Not very difficult to install. I just followed the instructions and, there it was, fully functional and no problems to date.

Eric from NY —
I was very happy to receive the unit in very good condition.

I was very pleased with the promptness that my order was filled and I was very happy to receive the unit in very good condition. I was also pleased to find the unit at such a good price point. I have recommended your web site to a couple of neighbours who were looking for bathroom items.

lyn j. from —
