QM DrainDelmar Series Delta Side Outlet Linear Drain33.300.24FSO GD
Finishes and Colors: Gold
Image 6 of 9
$536.25
Free Shipping
Damage-Free Guarantee
Free Warehouse Storage
Compatibility Checks
QM Drain 33.300.24FSO GD Specs
| Width | 3-1/4" |
|---|---|
| Length | 24" |
| Collection | Delmar Series |
| Overview |
|
|---|---|
| Brand | QM DrainShop All QM Drain |
| Collection | Delmar SeriesShop All Delmar Series |
| Model Number | 33.300.24FSO GD |
| UPC | 818835029888 |
| Alternative SKU | QM Drain 33.300.24FSO BK, QM Drain 33.300.24FSO BZ, QM Drain 33.300.24FSO CH, QM Drain 33.300.24FSO GD, QM Drain 33.300.24FSO LG, QM Drain 33.300.24FSO PS, QM Drain 33.300.24FSO ST |
Details

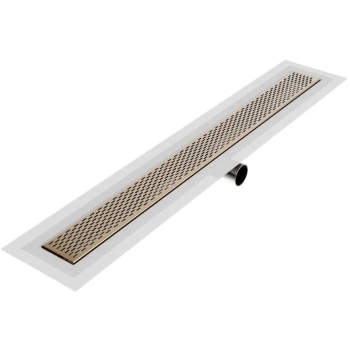

The Delta Side Outlet Flange Edge Linear Drain is a stainless steel linear drain designed for modern tile showers. Features a sleek wedgewire grate and integrated Superdry waterproofing membrane for secure, long-lasting installations. Key Features
- Complete Kit: Side-outlet drain channel with pre-attached waterproofing collar, delta grate, 32 sq. ft. Superdry membrane, and coupling
- Faster Installation: One sloped mortar layer, waterproof, and apply tile
- Watertight Fit: Superdry membrane pre-sealed to the drain flange
- High-Quality Materia l: 316 Marine-grade stainless steel for corrosion resistance
- Code Compliant: Meets UPC, National Plumbing Code of Canada, and ANSI A118.10
- Optional Add-on: Tile Guard - Protects exposed tile edges for a clean finish
- Kit includes: Side outlet drain channel with pre-attached waterproofing collar, Delta Linear grate, 32 sq. ft. of Superdry waterproofing membrane, Coupling
- Grate Style: Delta linear grate
- Material: 316 marine-grade stainless steel
- Outlet Size: 2 in
- Outlet Positions: Side outlet
- Profile Width: 3.25 in
- Channel Height: 1 in low profile
- Adjustability: Fixed standard lengths
- Installation Method: Modern Installation (Bonded Waterproofing Membrane)
