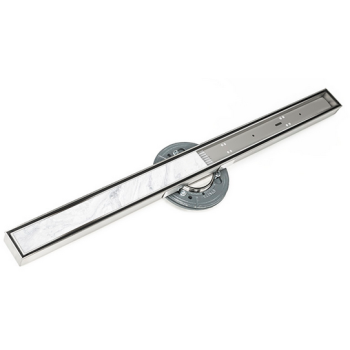

Infinity DrainTIF AS Series Site Sizable 48" High Flow Complete KitSTIF AS 9948-P PS
Finishes and Colors: Polished Stainless
Drain Body Material: PVC
$1,518.75
Free Shipping
damage free guarantee
If you follow the simple guidelines below and find any damage on your product, we guarantee to promptly send you a free replacement.
Free Warehouse Storage
If you’re ready to order but not quite ready to receive your items yet, let us know. In many cases, we can hold your order in our warehouse—free of charge—until you need it.
Infinity Drain STIF AS 9948-P PS Specs
| Width | 2-7/8" |
|---|---|
| Length | 48-1/8" |
| Height | 1-5/8" |
| Collection | TIF AS Series |
| Overview |
|
|---|---|
| Brand | Infinity DrainShop All Infinity Drain |
| Collection | TIF AS SeriesShop All TIF AS Series |
| Model Number | STIF AS 9948-P PS |
| UPC | 00840126104905 |
| Alternative SKU | Infinity Drain STIF AS 9948-A SS, Infinity Drain STIF AS 9948-A PS, Infinity Drain STIF AS 9948-P SS, Infinity Drain STIF AS 9948-P PS, Infinity Drain STIF AS 9948-I SS, Infinity Drain STIF AS 9948-I PS, Infinity Drain STIF AS 9948-A SB, Infinity Drain STIF AS 9948-I SB, Infinity Drain STIF AS 9948-P SB, Infinity Drain STIF AS 9948-A BKshow more |
Details
Features:
- Site Sizeable: Modify length and locate outlet placement on site
- Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
- 12 gauge, 316 stainless steel tile-in top grate with stainless steel channel
- Accepts flooring material up to ¾” in thickness
- Overall width: 2-7/8", Min. height above waterproofing: 2"
- Capacity: 21 gallons per minute per outlet. Additional outlets may be added to increase flow rate.
- 3” clamp down floor drain with 4” throat (strainer size) included in complete kit
Includes:
- 1x TA 6548 Tile Insert Frame
- 1x HC 6540 Stainless Steel Channe
- 1x HF 99 8” Outlet Section Stainless Stee
- 2x TJS 65 Stainless Steel Joiner Strip
- 1x TKEY Lift Out Key
- 1x Sikaflex 1a Construction Sealant
- 1x Drain Body
