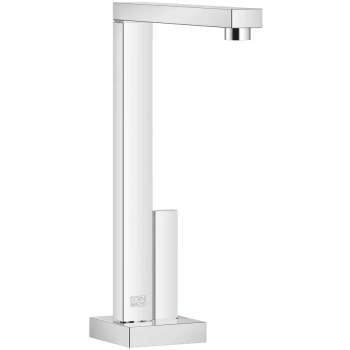

DornbrachtHot & Cold Water Dispenser17861680
9-1/8" H
Finishes and Colors: Chrome
Image 1 of 8
Dornbracht 17861680 Specs
| Spout Projection | 5-3/4" |
|---|---|
| Spout Style | Fixed Spout Straight Spout |
| Height | 9-1/8" |
| System Type | Hot and Cold |
| Number of Handles | 1 |
| Distance from Aerator to Deck | 8-3/8" |
| Overview | |
|---|---|
| Brand | DornbrachtShop All Dornbracht |
| Model Number | 17861680 |
| UPC | 4029011687143, 4029011687280, 4029011763984 |
Details
- 5-3/4" Projection
- Rigid, thermally insulated spout
- Laminar stream
- Total height 9-1/8"
- 8-3/8" height to aerator/spout outlet
- 1-3/8" hole diameter
- Provides filtered, hot water, 199°F max. temperature
- Provides filtered, cold water (not chilled)
- Water flow rate limited to max. 0.5 gpm
- Control unit for wall assembly (5-3/8" x 6-1/4" x 2-3/8")
- Electronic valve
- Plug-in power supply, 100-230 V, 50-60 Hz, 18 W, incl. country-specific adaptor set
- Lead-free
- One lever for hot and cold water
- Spout ring cannot be removed.
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- (ADA)
- NOTE: Not compatible with Reverse Osmosis
- Compatible with Insinkerator® hot water tank HWT300-F3000S. Tank and filter not supplied from Dornbracht. More information on tank and filter at www.insinkerator.com.
- The installation must be above a kitchen sink.
- We recommend replacing the filter cartridge every six months. Please see the installation manual for more information.
