Myson

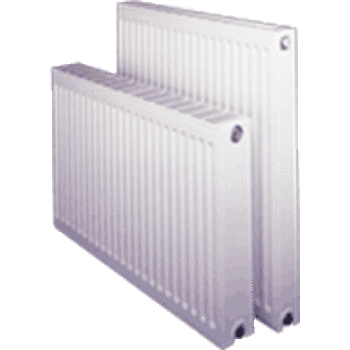

Select Panel Radiator Type 22G 11,601 BTUH Output

24" H

SD60160G
$520.00

Myson
Select Panel Radiator Type 22G 11,601 BTUH Output

24" H

SD60160G
$520.00

$520.00
check availability

Free ShippingNo sales tax outside New Jersey

Item Description

Overview


QualityBath.com is an authorized Myson dealer.

BrandMyson
Model NumberSD60160G
DetailsSelect Radiators will keep any room comfortable and in style. Myson's compact design, advanced construction, sleek styling and thorough testing assure the highest performance and reliability.
  • Mount on the wall, off the floor, making cleaning easy
  • Steel panel construction with a tough multi-layered white epoxy polyester powder coating.
  • Wall mounted with a depth of no more than 5 ¼ inches.
  • Delivers 2 to 4 times the heat output of baseboard per running foot.
  • Advanced welding techniques allow the convector plates to be welded directly to the water channel, providing quiet, gentle and responsive heating
  • Up-to-date fashionable high gloss finish
  • Carries a 5 year warranty against any manufacturing defects.


Type 22G: Standard double convector radiator with factory fitted top grille and end panels. Available in outputs from 2,430 Btu/hr to 13,031 Btu/hr. Projection from wall with bracket - 5-3/16".

Actual Dimensions: 23-5/8"H x 63"L

Radiator Valve Selection Guide:
Basic Installation: Use 2 LKD16AN (angle) or LKD16SN (straight) manual valves, nickel plated with screwdriver stops and caps.
Basic Upgrade: Use 1 FF16WAC and 1 FF16LAC manual valves, angle only, chrome plated with white handles (FF16WAC is adjustable for balancing, FF16LAC is fixed open but can be closed for service).
TRV (Thermostatic Radiator Valves) are available for automatic temperature control of individual radiators: available in 3 body patterns, with or without thermostatic head (sensor). Use in conjunction with LKD or FF.

PDF Technical Diagram
Height24
System TypeHydronic
